Quick Detail
4#-20# grade 304 304L 316L stainless steel angle bars, SS 304 angle bar
| name | stainless steel angle bar | material | 201 304 304L 309S 310S 316L 321 2205 |
| size | 4#-15# | length | 6m or as required |
| Type | hot rolled | Certificate | SGS/BV |
we can produce standard & un-standard size stainless steel angle bars as customer required.
Description
About our stainless steel angle bars
| Commodity: | Equal & Unequal Hot Rolled Steel Angle |
| Unit Price | 1200-4000 USD/Ton |
| MOQ | 5 TONS |
| Standard | GB / JIS / EN / ASTM / DIN |
| Material | 201 304 304L 309S 310S 321 316L 2205 904L.etc |
| Length | 6m or as required |
| Size | Equal | 20mmX20mmx2mm-200mmX200mmX24mm |
| Unequal | 25mmX16mmX3mm-200mmx125mmx18mm |
Characteristics and application
Stainless steel Angle steel is mainly divided into two categories, equilateral Angle steel stainless steel and unequal stainless steel Angle, which is not an equilateral Angle steel and stainless steel can be divided into unequal thickness and the two kinds of unequal different thickness.
Stainless steel Angle according to the stress of the structure of the different needs of various components, also can make members between the joints. Widely used in various building structure and engineering structure, such as the beam, Bridges, transmission tower, lifting transportation machinery, ships, industrial furnace, reaction tower, container frame and warehouse shelves, etc.
| Grade | Chemical Composition (%) |
| | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤1.00 | 5.5~7.5 | ≤0.060 | ≤0.030 | 3.50~5.50 | 16.00~18.00 | |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 6.00~8.00 | 16.00~18.00 | |
| 302 | ≤0.15 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.00 | 17.00~19.00 | |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 8.00~10.50 | 18.00~20.00 | - |
| 304L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 9.00~13.50 | 18.00~20.00 | - |
| 316 | ≤0.045 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.00~14.00 | 10.00~18.00 | 2.00~3.00 |
| 316L | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 12.00~15.00 | 16.00~18.00 | 2.00~3.00 |
Competitive Advantage
• All products are made of high-quality imported raw materials.
• Our products are certified by ISO9001:2008 authentication quality systems.
• we are nominated as the AAA enterprise by Jiangsu government.
• Quick Response to Your Enquiry
Product Tags:
|
|

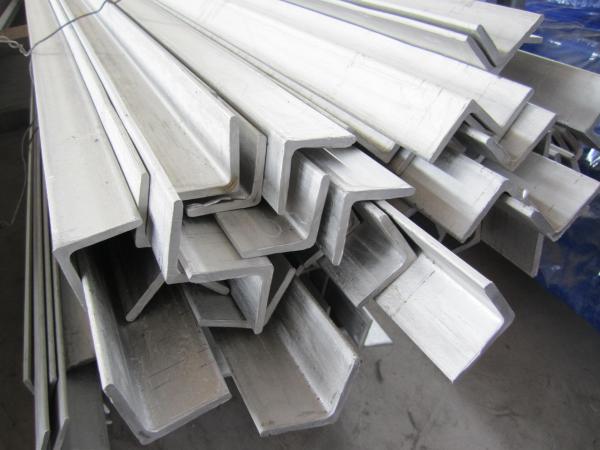

304 304L 316L stainless steel angle bar Images
|
